Why Fifth-Wheel Pin Boxes Need Fatigue Analysis
A fifth-wheel pin box transfers towing forces from the tow vehicle to the trailer’s front structure. During operation, it experiences repeated vertical, longitudinal, and lateral loads as the trailer travels over uneven roads, accelerates, brakes, and corners.
These forces pass through the pin box, mounting plates, fasteners or welds, and the surrounding trailer frame. If the load path creates high local stresses, repeated loading can initiate fatigue cracks even when the structure does not yield during a single load event.
For RV manufacturers, the challenge is to assess not only whether the pin box can withstand peak loads, but also whether the complete mounting structure can tolerate repeated loading over its intended service life.

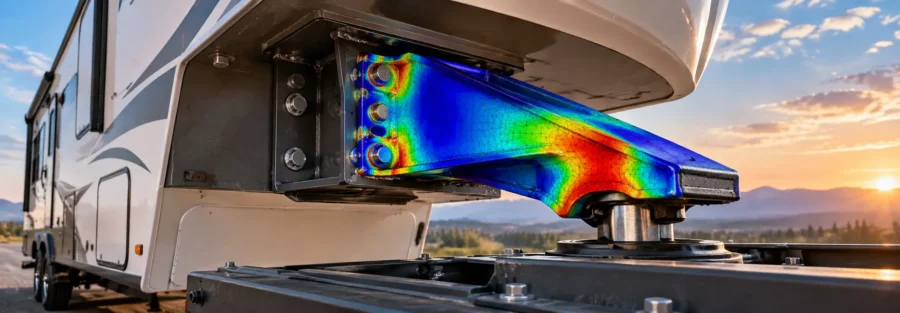

Fatigue analysis using finite element analysis (FEA) helps engineers identify critical regions, compare design alternatives, and assess potential durability concerns before committing to physical testing or production changes.
Where Do Fatigue Cracks Develop?
The pin box assembly should be evaluated as a connected structural system. Examining the pin box alone may miss stresses transferred into the mounting structure and frame.
Common areas requiring attention include:
- Pin box mounting plates: Load transfer through the mounting interface can create localized bending and stress concentrations.
- Welded joints: Weld toes, weld ends, and abrupt changes in joint geometry can become fatigue-sensitive locations.
- Fastener holes and attachment points: Local bearing loads, plate bending, and stress concentrations may affect durability.
- Trailer frame rails and crossmembers: Towing forces can introduce bending and torsion into the supporting frame.
- Geometric transitions: Changes in plate thickness, brackets, and section geometry can concentrate stress.
These are potential inspection and analysis locations, not a prediction that every fifth-wheel assembly will fail at these points. Actual fatigue risk depends on the design, material, manufacturing quality, loading, and service conditions.
How FEA Helps Assess Pin Box Fatigue
1. Define Realistic Towing Load Cases
The quality of fatigue analysis depends on how accurately the applied loads represent the trailer’s operating conditions.
Engineers should establish the relevant load cases for the specific trailer configuration. These may include vertical road inputs, longitudinal forces during braking and acceleration, lateral forces during cornering, and combined loading where appropriate.
The analysis should account for the pin load, trailer mass distribution, mounting geometry, and the way forces transfer into the frame. Applying an arbitrary force directly to the pin box without representing the actual load path can produce misleading results.
Where available, measured loads or a justified load spectrum can provide a stronger basis for durability assessment than a single assumed load case.
2. Identify Critical Stress Locations
A finite element model can help show how loads travel through the pin box and its supporting structure.
Engineers examine stress distribution, local deformation, and bending around mounting plates, welds, holes, and frame interfaces. The results help identify regions where geometry changes or load transfer may create fatigue concerns.
Mesh quality and connection representation are particularly important around these locations. A sharp geometric corner or idealized weld may produce a local stress peak that requires careful interpretation rather than being treated directly as a physical fatigue prediction.
3. Evaluate Repeated Loading and Fatigue Life
Static stress analysis identifies the response to individual load cases. Fatigue assessment goes further by considering how stress changes over repeated loading cycles.
Depending on the available material and loading data, engineers may use stress-life methods, strain-life methods, or suitable welded-joint fatigue approaches. Variable-amplitude loading may require cycle counting and cumulative damage assessment.
For welded mounting structures, the selected fatigue method should account for the weld detail and applicable fatigue data. Parent-material properties alone may not adequately represent weld fatigue performance.
The outcome can help engineers identify critical locations and compare relative durability between design alternatives. A reliable service-life estimate requires suitable loading histories, material or weld fatigue data, and appropriate modelling assumptions.
4. Assess the Supporting Frame
A pin box redesign can change how loads enter the trailer frame. Increasing the stiffness of one component, for example, may shift stresses into a mounting plate, weld, crossmember, or frame rail.
For this reason, the analysis should include enough of the surrounding structure to capture the relevant load transfer. Engineers can then evaluate whether a proposed improvement reduces the original fatigue concern without creating a new one elsewhere.
This system-level assessment is especially important when investigating cracks near mounting interfaces or evaluating a revised pin box design.
How Can Manufacturers Improve Fatigue Performance?
When analysis identifies a fatigue-sensitive region, potential design changes may include:
- Revising bracket or mounting-plate geometry to improve load distribution.
- Reducing abrupt section changes and avoidable stress concentrations.
- Reviewing weld geometry, weld termination locations, and joint details.
- Modifying local reinforcement or crossmember connections where justified.
- Evaluating material or thickness changes while considering weight and stiffness.
- Rechecking the complete load path after each significant design change.
Adding material is not always the best solution. A thicker plate may reduce local bending but increase stiffness and shift loads into adjacent components. Each modification should be evaluated against strength, fatigue, mass, manufacturability, and assembly requirements.
Why Static FEA Alone May Not Be Enough
A design that remains below the material’s yield strength under a peak towing load is not automatically fatigue-safe. Fatigue damage can accumulate under repeated stresses that are lower than the stress required to cause immediate permanent deformation.
Likewise, a single fatigue calculation is only as reliable as its inputs. Incomplete load cases, unrealistic boundary conditions, inadequate weld representation, or unsuitable fatigue data can affect the results.
Where required, simulation should be supported by physical testing, inspection findings, or measured load data. Correlating analysis with test results can improve confidence in the model and support subsequent design decisions.
Fifth-Wheel Pin Box and Mounting Structure Analysis
Caliber Technologies supports structural simulation and engineering analysis for vehicle and trailer components. For fifth-wheel pin box projects, FEA-based assessment can help evaluate mounting stresses, investigate potential fatigue locations, assess frame load transfer, and compare structural design alternatives.
The analysis scope should reflect the assembly geometry, towing load requirements, fatigue data, and available validation evidence.
